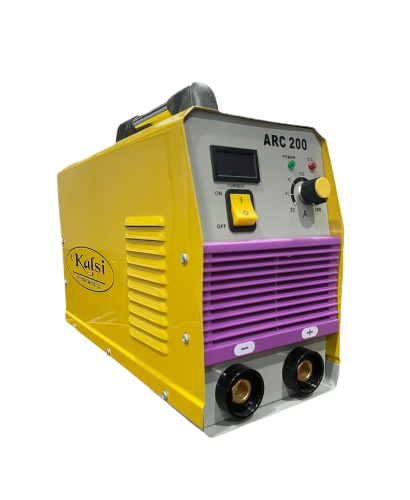

ARC 200

Product Details

MODEL- ARC 200

Features :

Outstanding Arc Stability with Low Spatter
Mosfet Technology, good efficient, current saving.
Auto Protection against Over-Voltage and Over-Current.
Auto-Adaptive Arc Force minimizes electrode sticking in the puddle without compromising arc stability or increased spatter.
Super Portable and Energy Saving.
5sqmm. 220V input cord.
7kg only you can take it anywhere.

Enquiry Now

Category: Inverters Tags: ARC 200, INVERTERS

Description
Reviews (0)

Description

Specification	Unit	ARC 200
Input voltage	Volt	AC220±15%
Phase	No	1
Frequency	Hz	50/60
Max input KVA@100% duty cycle	KVA	4
Open circuit voltage @240 Vac	Volts	62
Welding current range	Amps	10-200
Welding current @60% duty cycle	Amps	200
Welding current @100% duty cycle	Amps	155
Power factor	CosΦ	0.93
Idle power	W	16
Efficiency	%	85
Degree of protection	Class	IP21
Insulation	Class	F
Suitable electrode diameter	mm	1.6 – 3.2
Cooling	Type	Forced Air
Dimensions (LxWxH)	Inch	15x6x9.5
Weight (approx)	Kg	8
