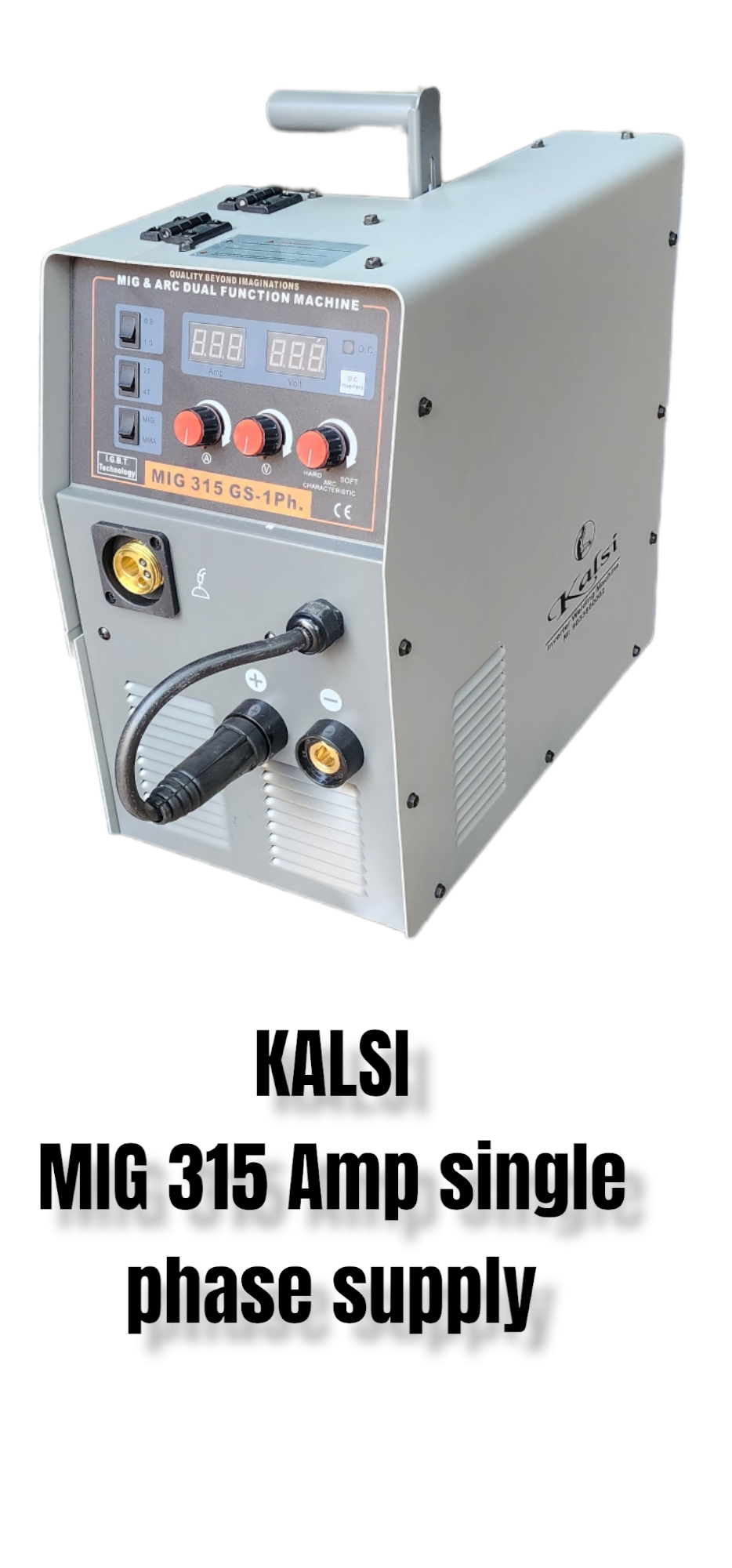

KALSI MIG 315 AMP SINGLE PHASE SUPPLY

Features :

Digitally designed inverter controlled GMAW/MIG and FCAW here offers low spatter, stable arc for welding
Greater efficiency and higher power factor results in greater power saving
Repeatable, accurate setting of welding limit is done by digital display licence
The wire feeder motor with printed circuit is there for reliability and advanced resolution
There is a superior ARC feature by digitally controlled waveform
The wire feeder have dual gear to make the functioning smooth and uniform
This MIG machine is designed and approved for outdoor.

Enquiry Now

Category: MIG

Description

Specification	Unit	MIG 300 S
Input voltage	Volt	AC415±15%
Phase	No	3
Frequency	Hz	50/60
Max input KVA@100% duty cycle	KVA	12
Open circuit voltage	Volt	65
Welding current range	Amps	40-300
Rated voltage range	Volt	16-36
Welding current @60% duty cycle	Amps	315
Degree of protection	Class	IP23S
Insulation	Class	H
Wire feed speed	m/min	1.5 to 20.1
Suitable wire diameter	mm	0.8, 1.0, 1.2 & 1.6
Wire feeder speed control	–	Stepless
Wire feeding mechanism	–	External-double roll quick change over type
Welding torch – Rated current	Amp	350
Cooling	–	Forced Air
Dimensions (LxWxH)	mm	550x280x545
Weight (approx)	kg	22
